The VMS range provides a flexible, high-performance solution for single-phase applications in both AC and DC systems.
Each support can hold one, two, or three conductors and achieve fault ratings up to 100 kA for 1 s at 300 mm spacing.
Used with or without spacers, VMS supports allow custom conductor centres, or fixed options at 110 mm, 122.5 mm, and 130 mm, giving engineers precise control over layout and clearances.
Manufactured from glass-reinforced polyamide 6.6, they combine mechanical strength, thermal stability, and ease of installation.
Key Features

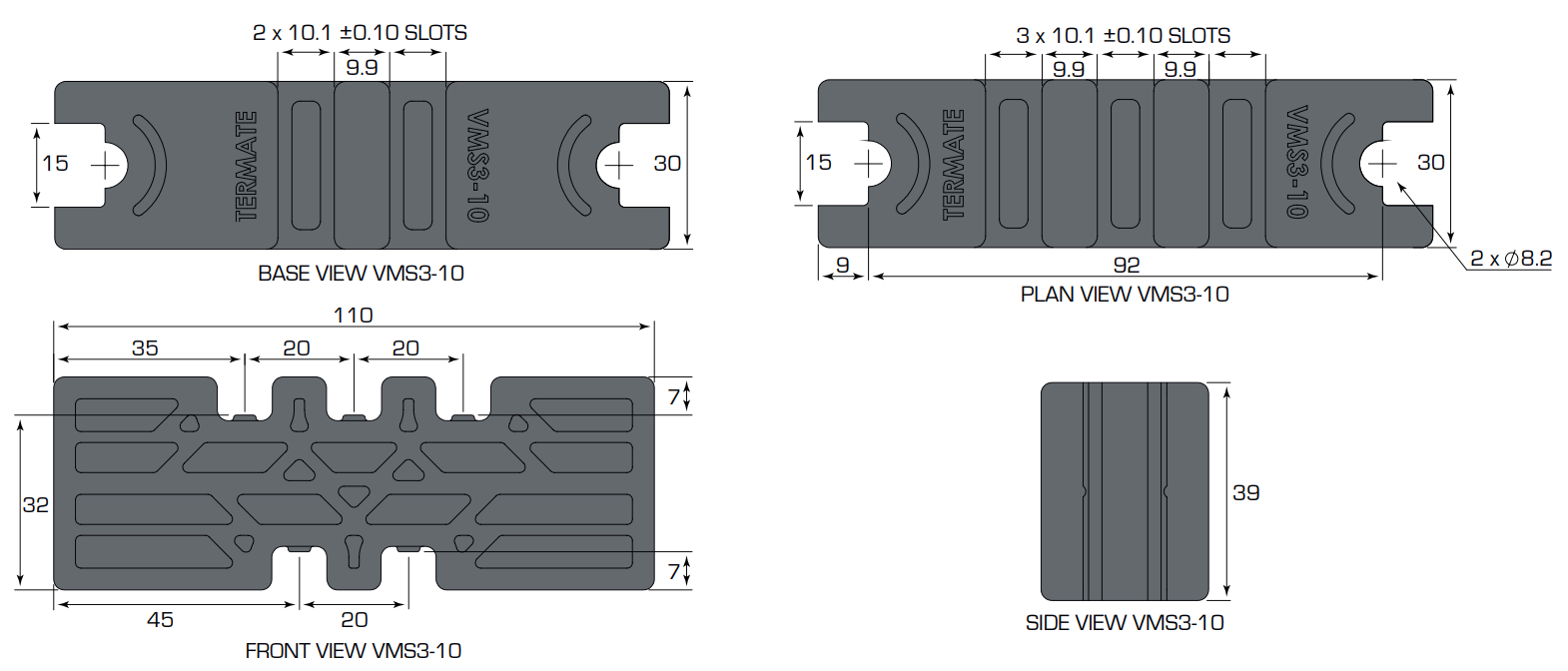

Technical Information for VMS Range Busbar Supports
You will find useful technical information below but, if you have any questions, please contact our technical team for support.
† In line with the limits set out in IEC 61439, insulating components in contact with conductors may be required to continuously operate at an average of 140 °C (max. 145 °C).
This range of products meets the requirement, the material for them being assigned thermal class F established using methods similar to IEC 60085.
| Part Number | 3D Model | Conductors | Support Phase Centres | Termate Icw Rating | Duration | Spacer Part Number | Spacer 3D Model | Spacer Requirement |
|---|---|---|---|---|---|---|---|---|
| VMS3-10 | VMS3-10 STEP file | 2 × 100×10 | 110 | 65 kA | 3 s | VMS-S110 | VMS-S110 STEP file | Optional |
| VMS3-10 | VMS3-10 STEP file | 2 × 100×10 | 110 | 80 kA | 1 s | VMS-S110 | VMS-S110 STEP file | Optional |
| VMS3-10 | VMS3-10 STEP file | 2 × 100×10 | 122.5 | 80 kA*# | 1 s | VMS-S122.5 | VMS-S122.5 STEP file | Optional |
| VMS3-10 | VMS3-10 STEP file | 3 × 100×10 ‡ | 130 | 65 kA | 3 s | VMS-S130 | VMS-S130 STEP file | Optional |
| VMS3-10 | VMS3-10 STEP file | 3 × 100×10 ‡ | 130 | 80 kA | 1 s | VMS-S130 | VMS-S130 STEP file | Optional |
| VMS3-10 | VMS3-10 STEP file | 3 × 100×10 ‡ | 130 | 100 kA | 1 s | VMS-S130 | VMS-S130 STEP file | Required |
* Fault level extrapolated from data achieved for the VMS-S110
# Part not included in UL Recognised Component File
‡ Extrapolation from tests performed at 110 centres allows 2 bars or 3 bars at 130 centres.
3 pole assembly at 130 mm phase centres using spacers
4 pole assembly at 110 mm phase centres using spacers
3 pole assembly—versatile mounting
Termate is committed to the highest standard of customer focus and we have made every effort to maintain the accuracy and completeness of the information provided in this data.
Where improvements to our products affect their installation and usage we endeavour to contact any customers who may be affected.
Warranty as stated in our Terms and Conditions of Trading is void if any modification is made to the warranted product.
